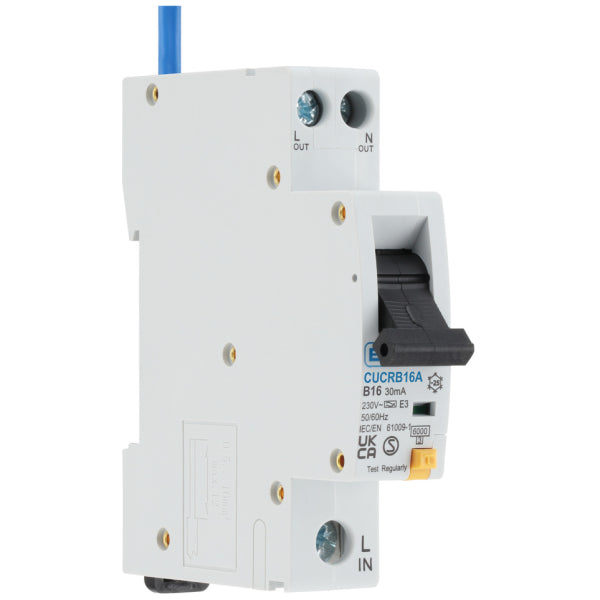

BG CUCRB16A-01 Comp RCBO Type A B Curve – 16 A Compact RCBO, Type A, B Curve, 6 kA, 30 mA
Protect circuits  in one slim device. The BG CUCRB16A-01 Comp RCBO Type A B Curve combines overload, short-circuit and residual-current protection in a space-saving 18 mm DIN-rail module, ideal for consumer-unit upgrades where space is tight.
Key benefits:
  • 16 A rated current suits lighting and socket radial circuits
  • Type A leakage detection covers AC and pulsating DC fault currents
  • B-curve magnetic trip (3–5× In) for fast domestic lighting and general-purpose protection
  • 6 kA breaking capacity handles high inrush loads
  • 30 mA sensitivity for life-safety protection
  • Single-module 18 mm width frees DIN-rail space
  • Double-pole switching for reliable isolation
  • Clip-fit busbar compatible with BG and most UK consumer units
  • CE and UKCA certified to IEC 61009-1
Technical specs:
Model: CUCRB16A-01
Rating: 16 A
Curve: B
Type: A (AC + pulsating DC)
Sensitivity: 30 mA
Breaking capacity: 6 kA
Poles: 1P + N
Width: 18 mm
Voltage: 230 V AC
