Home » BG CUCRB40A-01 Comp RCBO Type A B Curve

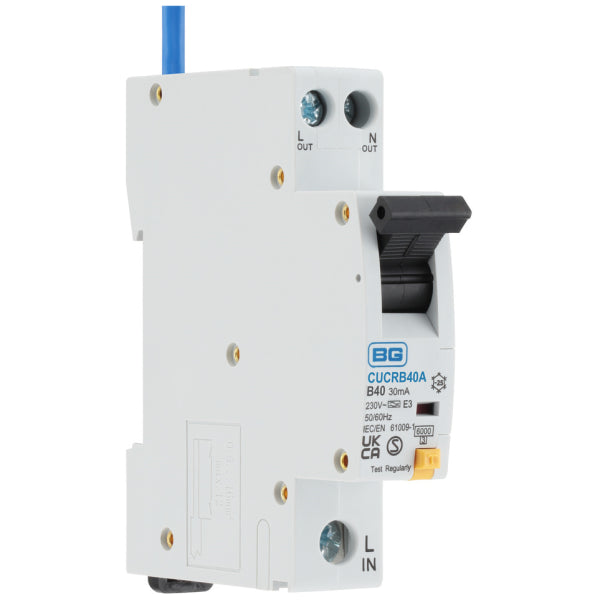

BG CUCRB40A-01 Comp RCBO Type A B Curve
BG CUCRB40A-01 Comp RCBO Type A B Curve
BG Electrical Accessories Ltd

BG CUCRB40A-01 Comp RCBO Type A B Curve

In stock
SKU: CUCRB40A-01
ALL PRICES EXCLUSIVE OF VAT
£11.50
Sale £63.75 £11.50
Manufacturer

Use this text to encourage communication or promote sharing on social networks.

You can also add links

BG CUCRB6A-01 Comp RCBO Type A B Curve – 6 A Compact RCBO, Type A, B Curve, 6 kA, 30 mA
The BG CUCRB6A-01 Comp RCBO Type A B Curve carries 6 A over-current, 6 kA short-circuit and 30 mA earth-fault protection into a single 18 mm module. Perfect for high-density consumer units and garage consumer units alike.
Features
  • 6 A rating ideal for lighting circuits, alarm panels and small radial feeds
  • Type A leakage detection trips on AC and pulsating DC faults—safe for LED drivers and electronics
  • B-curve magnetic trip (3–5× In) gives fast response for domestic lighting loads
  • 6 kA breaking capacity handles high inrush without nuisance tripping
  • 30 mA sensitivity for life-protection and fire-risk reduction
  • Single-module 18 mm width frees DIN-rail space for extra circuits
  • Double-pole switching isolates line and neutral for safe maintenance
  • Clip-fit busbar compatible with BG and most UK consumer units—no separate neutral lead
  • CE, UKCA and IEC 61009-1 approved for UK installations

Technical specs

  • Model: CUCRB6A-01
  • Rating: 6 A
  • Trip curve: B
  • Type: A (AC + pulsating DC)
  • Sensitivity: 30 mA
  • Breaking capacity: 6 kA
  • Poles: 1P + N
  • Width: 18 mm
  • Voltage: 230 V AC
