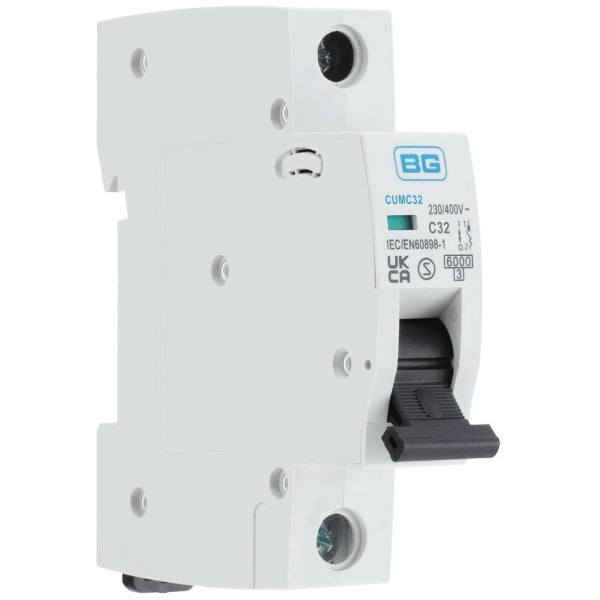

BG CUMC32-01 MCB SP Type C 32A 6kA

BG CUMC32-01 MCB SP Type C 32A 6kA | Single-Pole Type-C Circuit Breaker 32 Amp 6000 A Breaking Capacity

The BG CUMC32-01 MCB SP Type C 32A 6kA is a space-saving, high-performance miniature circuit breaker engineered for circuits that draw heavy in-rush current. Cooker feeds, small sub-mains, workshop motors and LED arrays start faster, run safer and comply with BS EN 60898-1 thanks to a magnetic tripping window of 5–10× In (Type C) and a robust 6 kA breaking capacity.

Features

• 32 A rating suits cooker circuits, small sub-mains, workshop motors and transformer loads
• Type C magnetic trip (5–10× In) prevents nuisance tripping on high in-rush equipment
• 6 kA breaking capacity secures domestic and light-commercial boards
• Single-pole 18 mm width frees DIN-rail space for extra circuits
• DIN-rail clip and busbar comb compatible with BG and most UK consumer units
• Positive contact indication shows on/off status at a glance
• Thermal-magnetic operation for overload and short-circuit protection
• CE, UKCA and IEC 60898-1 approved for UK installations

Technical specs

• Model: CUMC32-01
• Poles: 1P
• Rating: 32 A
• Trip curve: C
• Breaking capacity: 6 kA
• Width: 18 mm
• Voltage: 230 V AC
