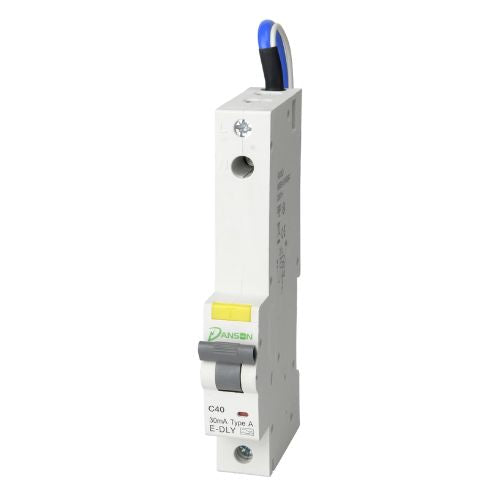

Danson E-DLY4140 RCBO 40A 30mA 230V A

Danson 40A 30mA Type A RCBO | Single Module C-Curve (E-DLY4140 Elegant)

Ensure comprehensive electrical safety with the Danson 40A 30mA Type A RCBO, a single-module, all-in-one protection device from the Elegant range. Model E-DLY4140 combines 40A overload protection, C-Curve tripping for inductive loads, and 30mA residual current protection against earth leakage faults. Designed for easy installation in consumer units, providing integrated safety for individual circuits at 230V.

Key Features & Benefits:

• Integrated 40A & 30mA Protection: delivers both overcurrent and earth fault protection in one compact device. Safeguards circuits and users against overload, short circuit, and electric shock risks.
• Type A Residual Current Detection. Protects against both alternating (AC) and pulsating direct (DC) residual currents.
• C-Curve for Inductive Loads: accommodates moderate inrush currents. Ideal for circuits powering appliances with motors, transformers, or LED drivers.
• Part of the Danson Elegant range, this single module RCBO features a sleek white finish for a clean aesthetic in any consumer unit or distribution board.

Technical Specifications at a Glance:

• Model Code: Danson E-DLY4140
• Range: Elegant
• Type: 1P+N RCBO (Single Module Width)
• Rated Current: 40A
• Residual Current: 30mA
• Tripping Curve: C-Curve
• RCBO Type: Type A (AC & Pulsating DC)
• Breaking Capacity: 6kA
• Voltage: 230V
• Finish: White
