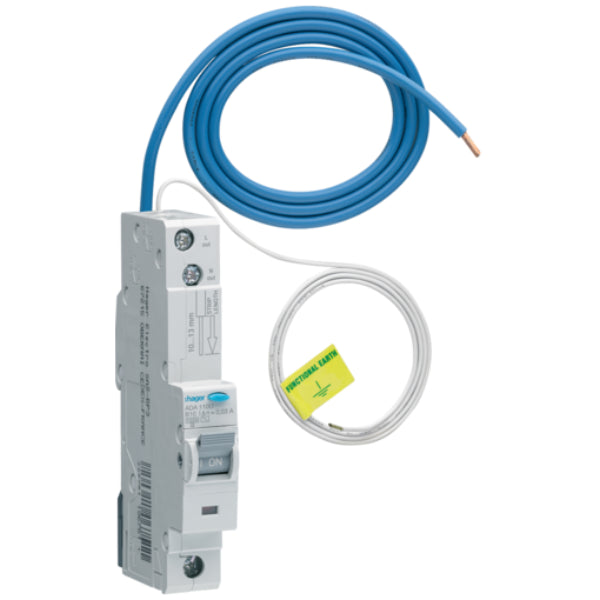

Hager ADA110U RCBO SP A B 10A 30mA 10kA

Hager ADA110U RCBO | SP Class A Type B 10A 30mA 10kA

Protect your circuits with advanced safety using the Hager ADA110U RCBO. This is a Single Pole (SP) Class A Type B device. It is rated for 10A and 30mA with a high 10kA breaking capacity. It combines earth leakage and overcurrent protection in one slim unit. It is ideal for modern circuits with sensitive electronics.

Key Features & Benefits:

• Class A & Type B Protection: Detects AC and pulsating DC faults (Class A) and has a standard Type B tripping curve. This protects circuits with modern appliances.
• High 10kA Breaking Capacity: The 10kA rating provides strong short-circuit protection. It is suitable for installations with higher fault currents.
• 10A & 30mA Integrated Safety: Combines 10A overload and 30mA shock protection in one device. It ensures compliance for individual final circuits.
• Compact 1-Module Design: The slim 1-module width saves space in your consumer unit. It allows for a neat and efficient board layout.

Technical Specifications at a Glance:

• Model: Hager ADA110U
• Type: Single Pole RCBO (SP)
• Current: 10A
• Sensitivity: 30mA, Class A
• Trip Curve: Type B
• Breaking Capacity: 10kA
• Width: 1 Module
