Hager ADB140 RCBO SP B 40A 30mA 10kA

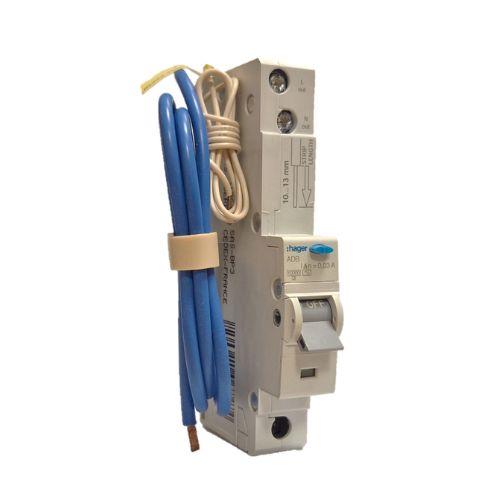

Hager ADB140 RCBO | SP Type B 40A 30mA 10kA

Protect high-power dedicated circuits with the robust Hager ADB140 RCBO. This is a Single Pole (SP) Type B device. It is rated for 40A and 30mA with a high 10kA breaking capacity. It combines earth leakage and overcurrent protection in one compact unit. It is ideal for circuits with heavy continuous loads.

Key Features & Benefits:

• Type B Protection: The standard Type B tripping curve is for general circuits with low inrush. It protects against overloads and short circuits.
• High 10kA Breaking Capacity: The 10kA rating offers strong short-circuit protection. It is suitable for installations with higher fault currents.
• 40A & 30mA Integrated Safety: Combines 40A overload and 30mA shock protection in one device. It ensures compliance for individual final circuits.
• Space-Saving 1-Module Design: The slim 1-module width saves space in your consumer unit. It allows for a neat and efficient board layout.

Technical Specifications at a Glance:

• Model: Hager ADB140
• Type: Single Pole RCBO (SP)
• Current: 40A
• Sensitivity: 30mA
• Trip Curve: Type B
• Breaking Capacity: 10kA
• Width: 1 Module
