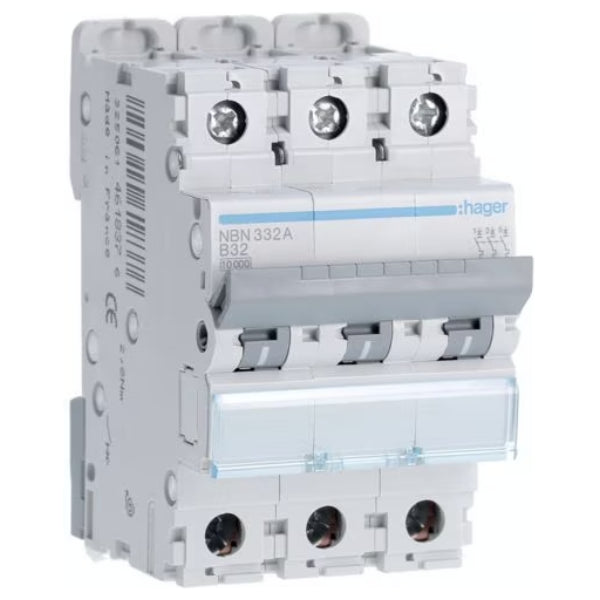

Hager NBN332A MCB TP Type B 32A 10kA

Hager NBN332A MCB | TP Type B 32A 10kA

Protect three-phase power and motor circuits with the robust Hager NBN332A MCB. This is a Three-Pole (TP) Type B miniature circuit breaker. It is rated for 32A with a high 10kA breaking capacity. It provides simultaneous protection across all three phases against overloads and short circuits. It is designed for commercial and light industrial three-phase installations.

Key Features & Benefits:

• Three-Phase Protection: This TP MCB safeguards all three live conductors (L1, L2, L3) in one device. It is essential for the safe operation of three-phase equipment.
• High 10kA Breaking Capacity: Offers superior 10kA short-circuit protection. This provides a crucial safety margin in commercial and industrial settings with higher fault levels.
• 32A Type B Protection: The standard Type B tripping curve is ideal for general three-phase circuits. It protects against overloads and short circuits in balanced loads.
• Compact 3-Module Design: The 3-module width provides complete three-pole protection in a standard DIN rail footprint. It ensures a neat and organised distribution board layout.

Technical Specifications at a Glance:

• Model: Hager NBN332A
• Type: Three-Pole MCB (TP)
• Rated Current: 32A per pole
• Tripping Curve: Type B
• Breaking Capacity: 10kA
• Width: 3 Modules
