Hager SPN440D Surge Protector 4P 40mA

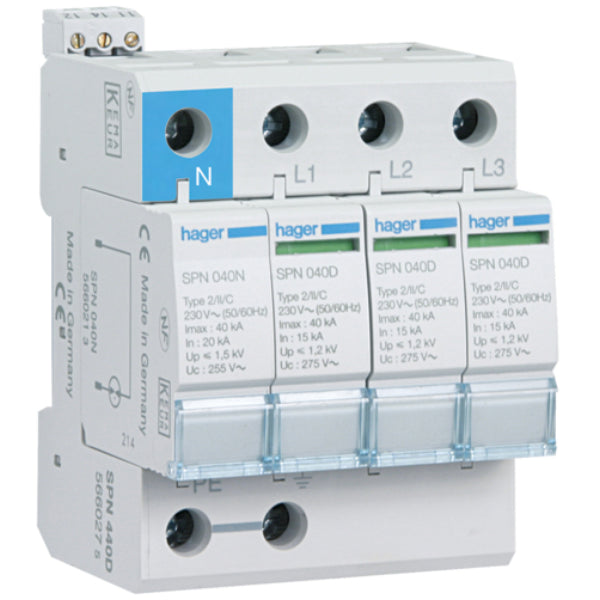

Hager SPN440D Surge Protector | 4P 40kA (Type 2)

Protect three-phase electrical installations and sensitive equipment with the Hager SPN440D Surge Protector. This device is a 4-Pole (4P) Type 2 surge protection device (SPD). It has a high discharge capacity to safeguard against damaging voltage surges. These surges are often caused by lightning strikes or electrical switching.

Key Features & Benefits:

• 4-Pole Protection for Three-Phase Systems. Coordinated surge protection for all live conductors and the neutral, essential for three-phase supplies.
• High 40kA Surge Discharge Capacity. The device offers a high 40kA per phase discharge capacity & effectively diverts powerful transient overvoltages safely to earth.
• As a Type 2 device, it is designed for installation at the distribution board level.
• Visual Status Indication & Thermal Protection. It features a clear window with a colour-coded status indicator.
• Provides the main barrier against typical induced surges.

Technical Secifications at a Glance:

• Model: Hager SPN440D
• Type: Type 2 Surge Protection Device (SPD)
• Poles: 4-Pole (4P)
• Rated Discharge Current (In): 20kA (8/20μs) per phase
• Max Discharge Current (Imax): 40kA (8/20μs) per phase
• Voltage Protection Level (Up): ≤ 1.5kV
• Status Indication: Visual window (Green/Red)
